Field manual
Core EFI V4 manual

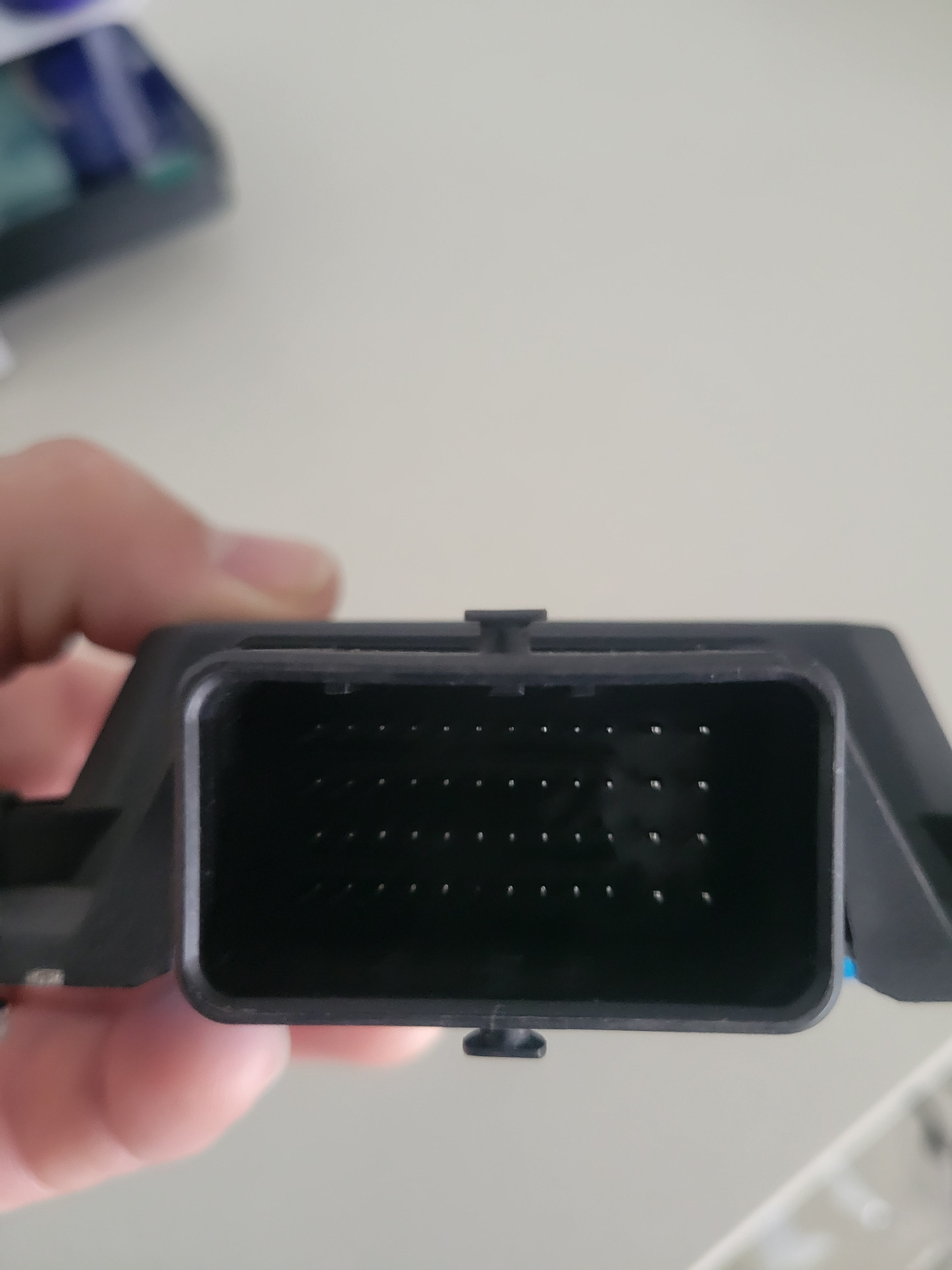

Technical manual for the 48-pin Molex V4 — pin map, power, sensors, trigger, injectors, ignition, DBW, CAN and first start.
Open manualShop/ECU
Core EFI V4
R 8,250.00
ZAR · Tax included

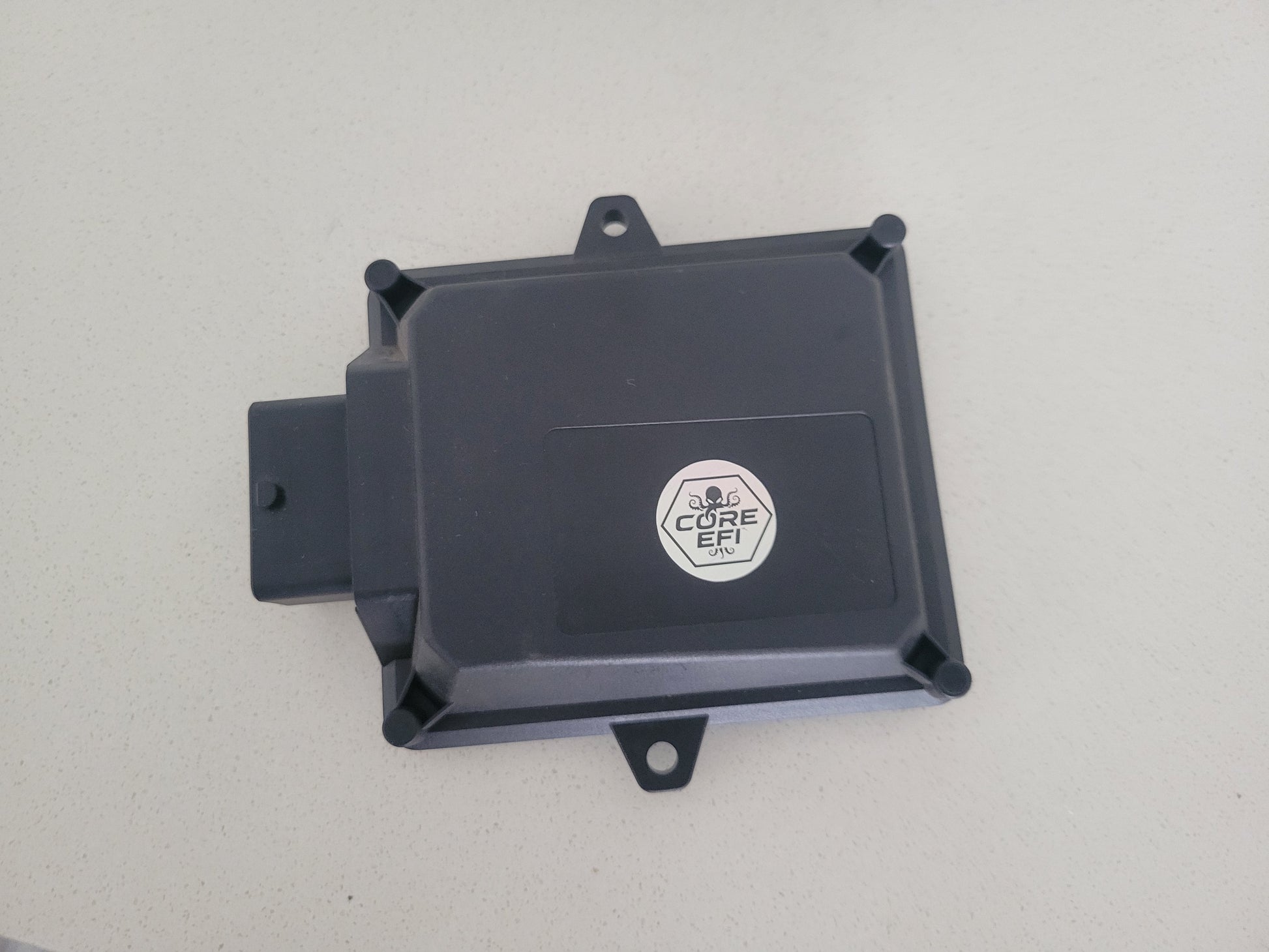

Cortex-M4 Power ECU with CAN, drive-by-wire and sequential I/O for four- and six-cylinder builds.
1
Hardware
- Cortex-M4 Power ECU
- CAN Bus
- DBW
- 8 low side Injector outputs
- 2 Low Side VVT outputs
- 6 Hi/Low Coil outputs
- 4 analog thermistor (temperature) inputs
- 10 analog voltage inputs (0-5v)
- Dedicated main relay control output
- 1 VR Crank input
- 3 hall inputs for cam/flex/vss
